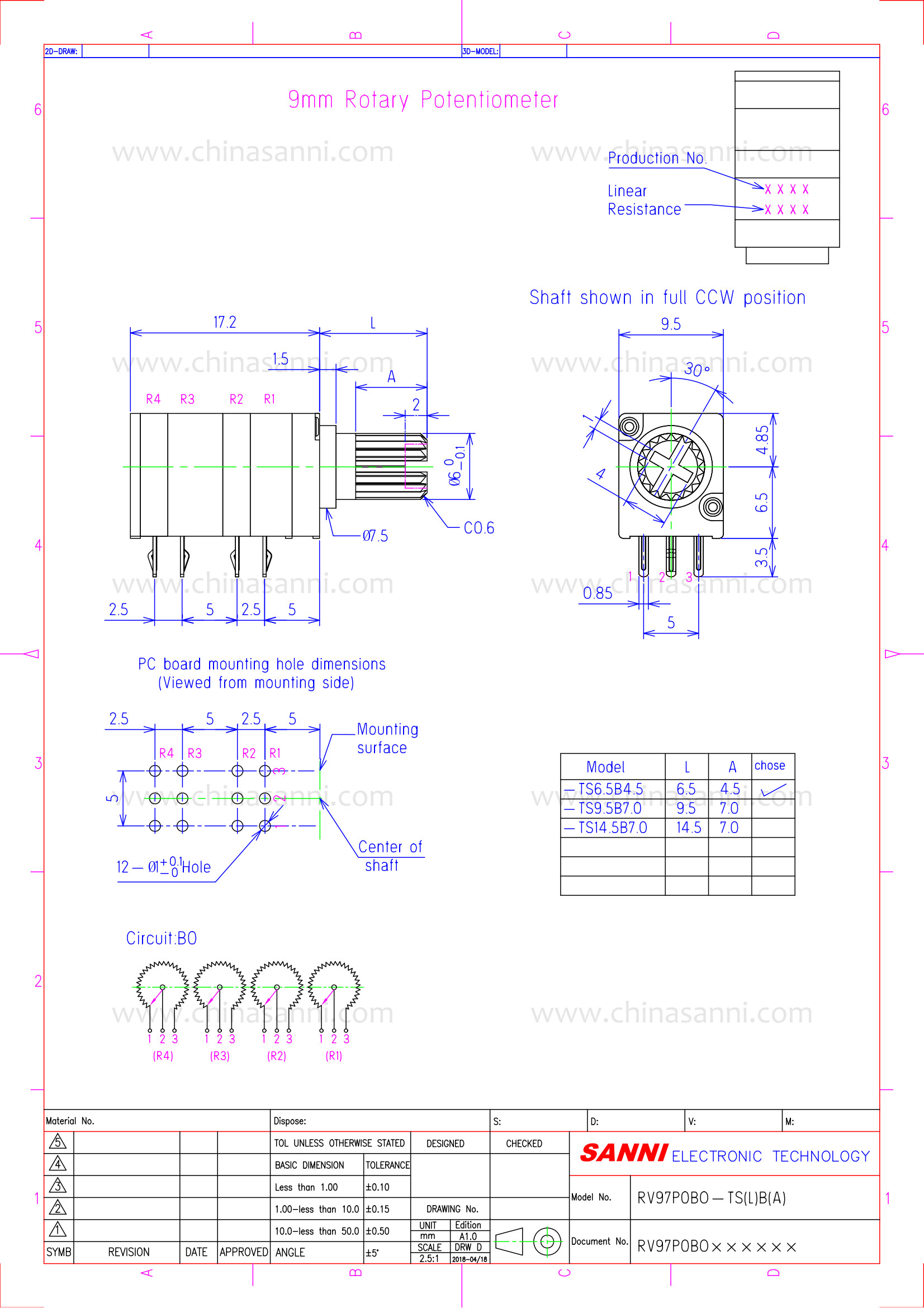

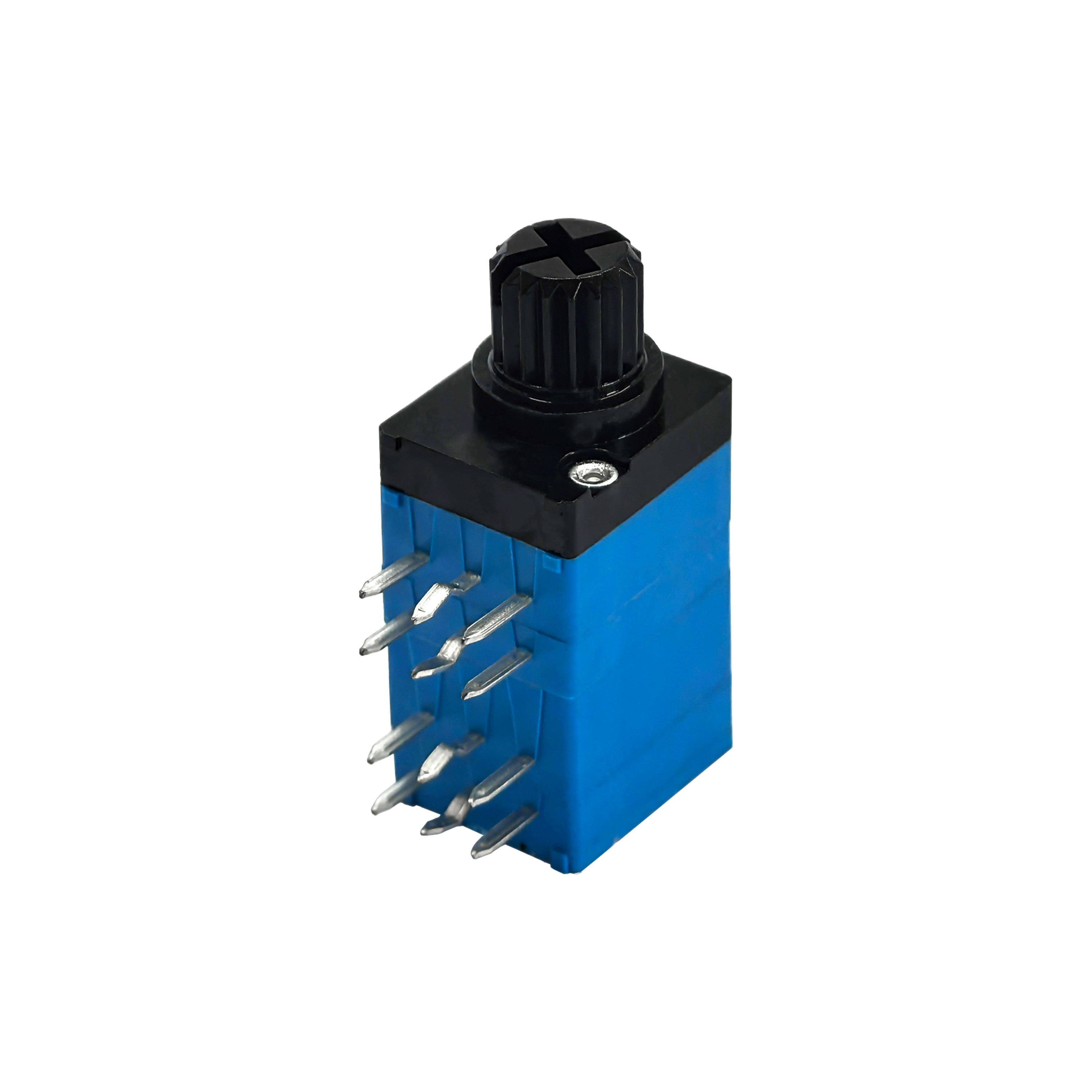

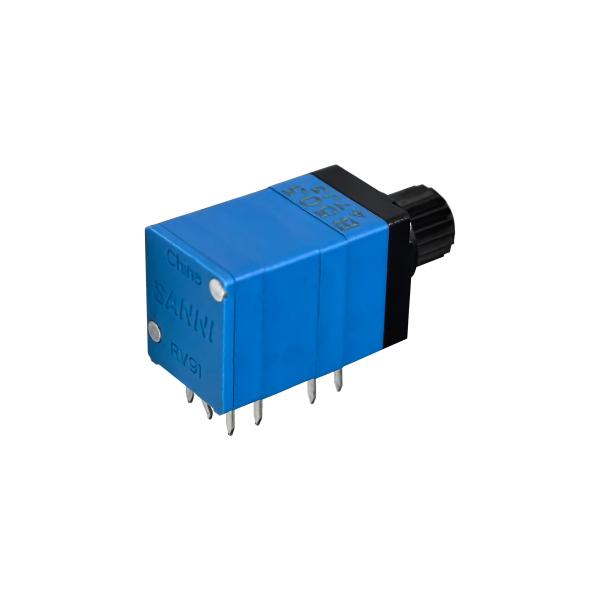

Manufacturer RV97 horizontal quad gang unequal foot distance 2.5*5.0mm sealed plastic shaft rotary potentiometer
Product Description:
The rotating potentiometer is mainly used for communication products, audio amplifiers, walkie-talkies and other electronic equipment, can also be used in home appliances, medical equipment. etc. It is sealed structure with plastic case and shaft. The length of shaft can be adjusted. Switches can be chosen or not. The main functions are to adjust the volume, pressure regulation, temperature regulation, dimming and other functions.
Features of Rotary Potentiometer
- Using plastic sealing structure, can effectively deal with wave welding.
- Good sealing performance
- Can be with positioning.
- Shaft length and shape can be adjusted.
Technical Parameters:
| 1.Electrical Characteristics |
| Total resistance | 100Ω-3MΩ |
| Insulation resistance | 100MΩ min. 250V DC |
| Residual resistance | 20ΩMax. |
| Rated Power | Linear taper:0.05W, Audio Taper 0.025W |
| Noise | 100mV Max |
| Voltage proof | 100V AC for 1 minute |
| Maximum operation voltage | 50V AC/20V DC |
| Gang error applicable for Dual unit parts for audio volume control purposes | -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.) |
| 2.Mechanical Characteristics |
| Rotation stopper strength | Min:4Kgf |
| Total rotation angle | 300o±5o |
| Totational torque | 30~80gf.cm |
| Key push-pull strength | Min:8Kgf |
| Terminal Strength | 5N for 1 minute |
| 3.Switch Characteristics |
| Switch Type | SPST |
| Rated Power | 1A 16V DC |
| Switch Torque | 500gf.cm Max |
| Switch Angle | 40o Max |
| Operating life with load:as rating | 15000 cycles 200mΩ Max |
| Initial contact resistance | 100mΩ Max |
| Insulation resistance | 100MΩ min. 250V DC |
| Voltage proof | 300V AC for 1 minute |
| 4.Environmental Performance |
| Operating temperature range | -10oC to +70oC |
| Storage temperature range | -40oC to +85oC |
| 5.Welding heat reference |
| Manual Soldering | 350oC±10oC/3+1S |
| Wave Soldering | 260oC±5oC/10±1S |
