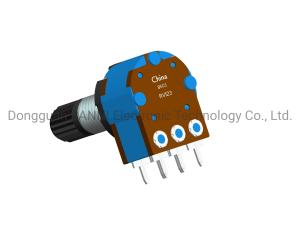

12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM

Name: 12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM
Brand: SANNI
Price: 0.2 USD

Quality 12mm Dual Unit Rotary Potentiometer Insulated Shaft Sealed RV123G0 OEM wholesale

Place of Origin : China

Brand Name : SANNI

MOQ : 2000PCS

Packaging Details : 2000PCS/BOX

Delivery Time : 25 Working days

Payment Terms : T/T

Supply Ability : 30000pcs/Month

Model Number : RV123G0

Price : USD0.2~0.3 per pc

Model NO. : RV123G0

Taper : Linear or Log

Brand : Sanni

Specification : 12mm

Resistance : 30K,50K,100K or Customize

Customization : Available | Customized Request

Contact Now

RV123G0 12mm Rotary Potentiometer Insulated Shaft Sealed Dual Unit

Description of Rotary Potentiometer

The rotating potentiometer is an adjustable electrical resistor, which wipes on the resistors by the wiper, and obtains the output voltage associated with the input voltage in the circuit.

Features of Rotary Potentiometer

Using plastic sealing structure, can effectively deal with wave welding.
Good sealing performance
Can be with positioning.
Push-pull switch or rotating switch can be chosen.
Shaft length and shape can be adjusted.
A variety of mounting methods for choice.

Application of Rotary Potentiometer

Rotary Potentiometer is mainly suitable for walkie-talkie, multimedia audio, automobile power amplifier and other electronic equipment, but also can use household appliances or medical equipment. It's main functions are: light intensity adjustment,volume adjustment, menu selection, speed adjustment, temperature adjustment, etc.

Specification of Rotary Potentiometer

1.Electrical Characteristics
Total resistance	100Ω-3MΩ
Total resistance tolerance	50Ω~10KΩ:±30%/10KΩ~500KΩ:±20%/500KΩ~2MΩ:±30%
Residual resistance	R≤10KΩ: 10ΩMax./10KΩ<R>500KΩ:20ΩMax./R≥500KΩ Nominal total resistance of 0.1% or less
Rated Power	0.05W
Insulation resistance	100MΩ min. 250V DC
Voltage proof	250V AC for 1 minute
Maximum operation voltage	50V AC/10V DC
2.Mechanical Characteristics
Rotation stopper strength	Min:4.0Kgf
Total rotation angle	300^o±5^o
Totational1	10-150gf.cm
Key push-pull strength	Min:8Kgf
Terminal Strength	5N for 1 minute
3.Environmental Performance
Operating temperature range	-10^oC to +70^oC
Storage temperature range	-40^oC to +85^oC
4.Welding heat reference
Reference for hand soldering	350^oC±10^oC/3+1S
Reference for dip soldering	260^oC±5^oC/10±1S
