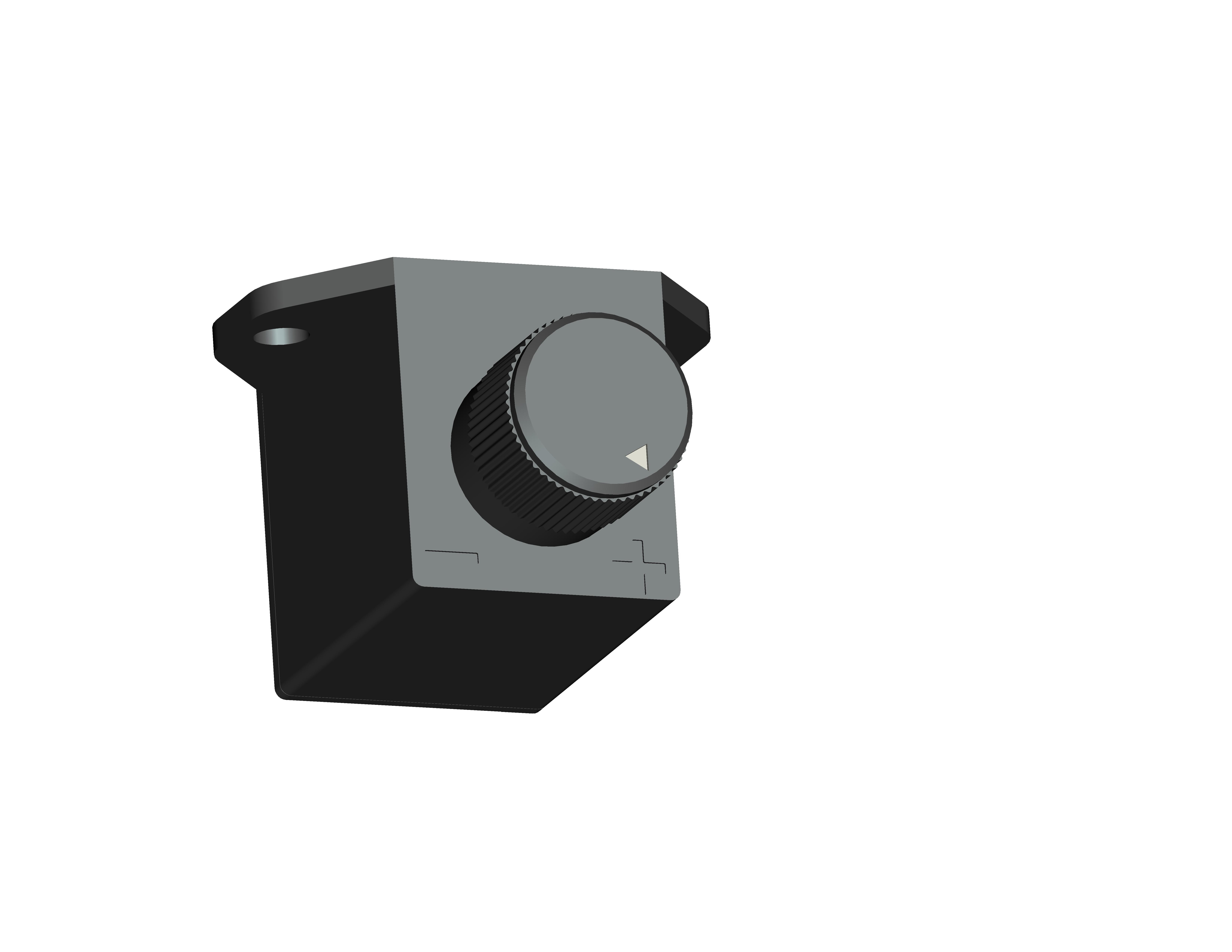

WLC20002 Customized Remote Control Potentiometer Box Used For Car Amplifier

Brand Name : SANNI

Model Number : WLC20002

Place of Origin : China

MOQ : 5000pcs

Price : USD1.5~2.0 per pc

Payment Terms : T/T

Supply Ability : 10000pcs per Month

Delivery Time : 35 working days

Packaging Details : 500pcs per Carton box,

Certification : ISO9001:2015

Model NO. : WLC20002

Application : Car Amplifier

Resistance change scale : Linear or Log

Type : Rotary Potentiometer

Specification : 9mm Potentiometer

Customization : Available | Customized Request

Contact Now

WLC20002 Customized Remote Control Potentiometer Box Used For Car Amplifier

Product Description

The car amplifier remote control box is customized to make the traditionaly remote components to an ingegrated remote box to match customer's car amplifier for convenient installation. The design and prototype jobs are all done by SANNI's engineer per customer's request.The key component of the box is SANNI's potentiometer which has stable and high quality performance.

Product Features

Seal type
IP67 Water proof
Can mark customer's logo
Smooth rotation feeling
Taper and gangs--can customize

Cable length -- can customzie

Plug type-- can customize

Complaint to Rohs directive
WLC20002 Customized Remote Control Potentiometer Box Used For Car Amplifier

Product Specification

1.Mechanical Characteristics
Total rotation angle 300o±5o
Totational torque 10-150gf.cm
Key push-pull strength Min:8Kgf
Rotation stopper strength Min:4Kgf
Terminal Strength 5N for 1 minute
Key Wobble Max: 0.6*L/20mm P-P
2.Electrical Characteristics
Total resistance 100Ω-3MΩ
Total resistance tolerance 50Ω~1KΩ:±30%/1KΩ~500KΩ:±20%/500KΩ~3MΩ:±30%
Rated Power 0.05W
Residual resistance 10ΩMax
Maximum operation voltage 50V AC/10V DC
Insulation resistance 100MΩ min. 250V DC
Voltage proof 300V AC for 1 minute
Gang error applicable for Dual unit parts for audio volume control purposes -40dB to 0dB: 3dB max. ( Vehicle-compatible:-60dB to 0dB: 1.5dB Max.)
4.Environmental Performance
Operating temperature range -10oC to +70oC
Storage temperature range -40oC to +85oC

WLC20002 Customized Remote Control Potentiometer Box Used For Car Amplifier
